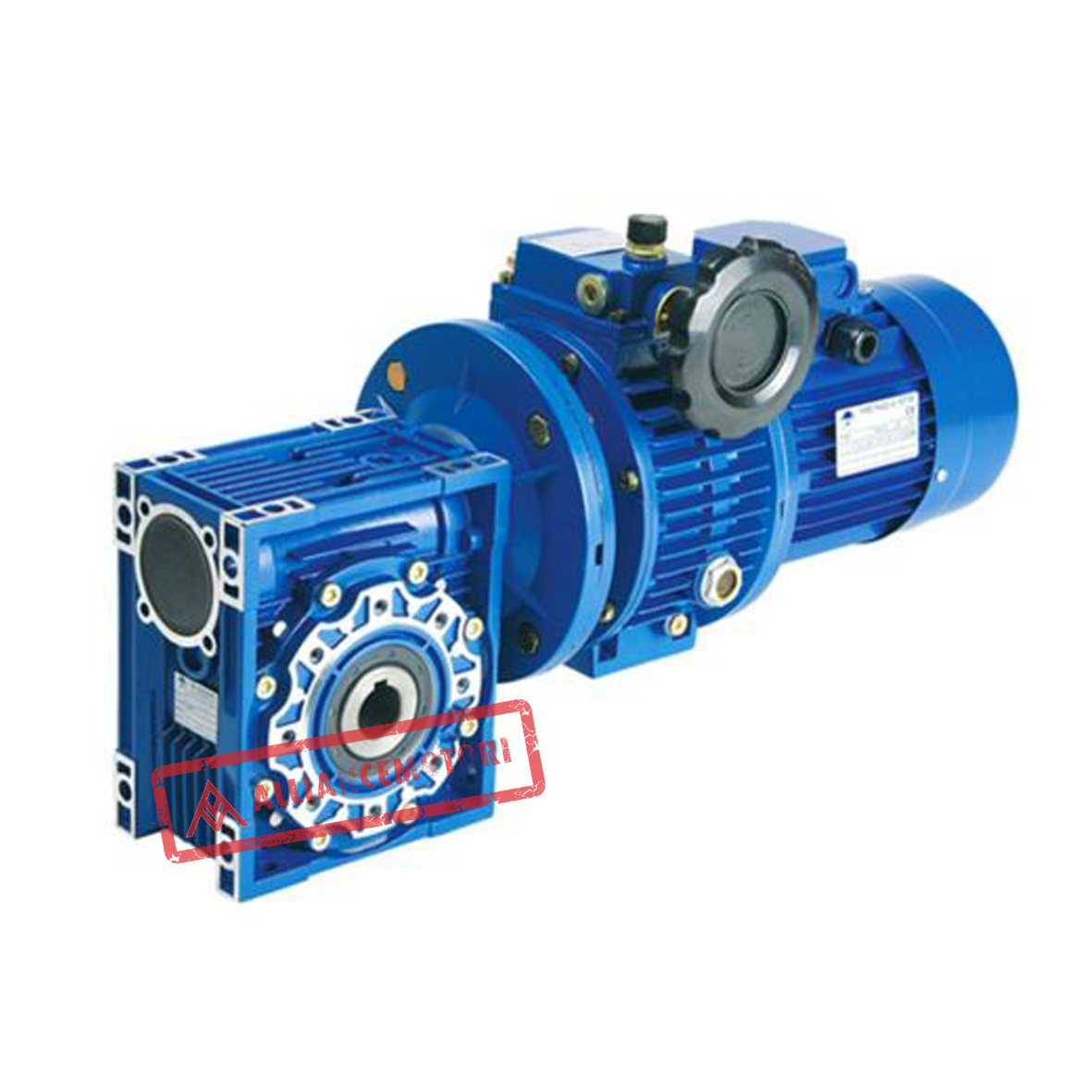

UDL-RV Series Worm Gear
UDL series stepless speed variators can be combined with all kinds of speed reducers, as to achieve low stepless speed changing.
UDL series stepless speed variators are widely used for foodstuffs, ceramics, packing, chemical, pharmacy, plastics, paper making, machine tools, communications, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation, it is good companion for your production.
Product Class Made extremely versatile using different input and output kits for worm gear boxes.
Housing : Aluminium Alloy
(Frame Size : 025 to 105)Cast Iron (Frame Size : 110 to 130)
Technical Specifications
Design Features & Applications
Performance Data
Dimension
Maintenance
Type : RV Series - Variator
Torque Capacity : 1040Nm
Ratio (i) : -
RPM : -
Rated Power : -
Mounting : M1-M6
Arrangement : Universal Mount
Connection : Input Shaft / IEC Adaptor
Lubrication : Synthetics ISO320
Max. Temperature : 95C
Ambient Temperature : -15~40C
Humidity : <90%
Altitude : <1000m
Cooling Method : IC410
---------------------------------------------------------------------------------------------------------------------------------------------------------------
The design of UDL series stepless speed variator compromises the advanced technology both at home and abroad.
The products include the following main characteristic:
- High speed-regulating precision : up to 0.5-1 rotation.
- Large speed-changing range : The speed ratio from 1:1.4 to 1:7 freely.
- High in strength and long on service life.
- Convenient to regulate the speed.
- Continuous in running, front to back in running direction, smooth in driving, stable in performance and low in noise.
- Full in sealing and suitable for any environment.
- Compact in structure and small in volume.
- Made in high quality aluminum alloy diecast info forming, good looking in appearance, light in weight and it never gets rusty.
- Good in adaptation : UDL series stepless speed variators can be combined with all kinds of speed reducers, as to achieve low stepless speed changing.
UDL series stepless speed variators are widely used for foodstuffs, ceramics, packing, chemical, pharmacy, plastics, paper making, machine tools, communications, and all kinds of automatic lines, pipelines and assembly lines which need speed regulation, it is good companion for your production.
